L-Type Touch Screen Kiosk & Digital Signage

65" Special Design 10 Points Touch Screen i3/4G/120G Windows OS Mall Information Kiosk

IR Interactive flat panel,
65 Inch AUO/Innolux/BOE Panel,
Resolution 1920x1080,
10 Touch Points,
Windows OS, i3 CPU/4G/120G

Information interactive Kiosk can be designed and configured with touch screen functions to engage your audience. The kiosks can also be as simple as inserting a USB or SD media cards to display your creative advertisements. You can decide to be more pro-active and adopt a network solution which will in return make your kiosks ready for any mass content updates, no matter their location. Our solutions are fully compatible with all the best CMS's on the market.

Main Features:
♦ Infrared technology Finger touch
♦ Multi fingers touch, 10 Points of Writing Touch
♦ HDMI -High-Definition Multimedia Interface keep the original high-resolution voice and image signals transmission
♦ Flexible Media Content-provide easy access for quick media changes and service
♦ Manufacturer supplying SKD and OEM service
♦ Wireless(Optional)
♦ Using anti-glare safety glass to protect the panel

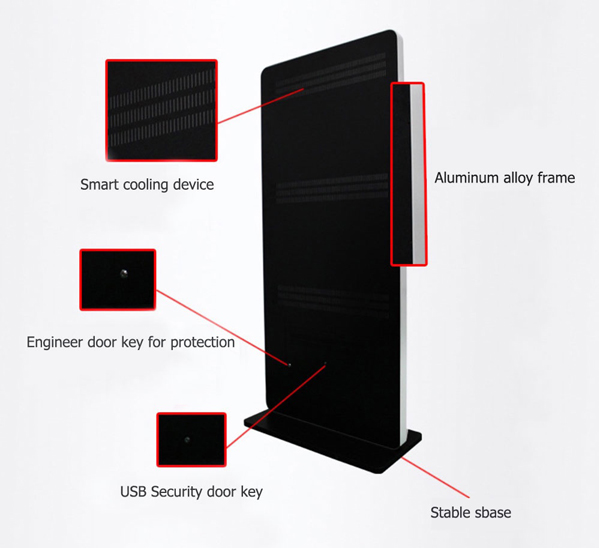

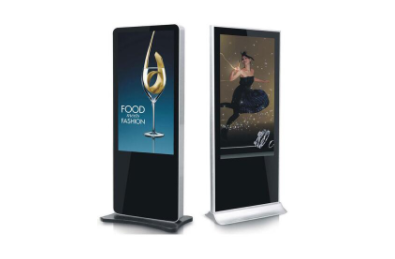

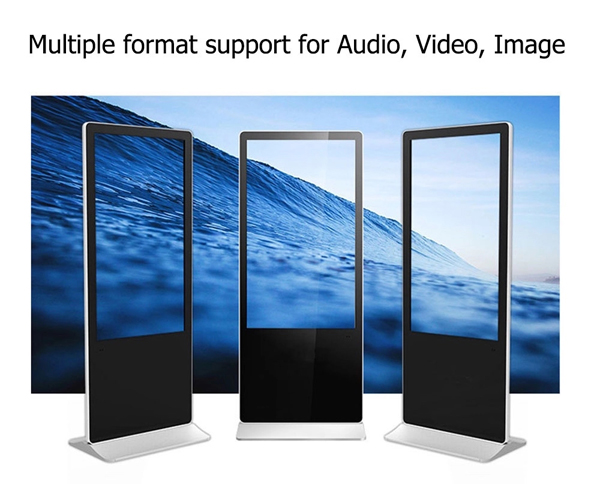

Product Show:

Parameters:

Product Name:           65" Information Kiosk
Model:                           GQ-C-65B-L
Viewable size:            1503.48(H)x878.52(V)mm
life span:                      50000 hours
Aspect ratio:               16:9
Brightness:                  450nits
Contrast:                       3000:1
Backlight:                      LED
View angle:                   178°(V)/178°(H)
Physical resolution:   1920(H) X1080(V)
System of video:         PAL/SECAM

Parameters- Touchscreen

Touch technology:                                  Multiple infrared scanning technology
Touch type:                                               10 points infrared
Touchscreen embedding methods:    Front access (Available for front maintenance)
drive mothed:                                           HID free drive
Material of writing surface:                 4MM tempered glass(anti-glare is optional)
Touchscreen induction mothed:         finger,writing pen,gloved hand or any other Non-transparent touch-sensitive media
Touch screen positioning resolution: 1920*1080

Parameters - PC

OPS CPU:                   intel core i3
Memory:                    RAM 4G DDR3
Hard disk:                  120G SSD
Operation system: Windows 7
Graphic card:            Integrated
Realtek:                      Integrated
WIFI:                            Open end 2.4G,150Mbps
Bluetooth:                 Open end
interface:                   USB x4, earphone output x1,MIC x1,VGA output x1,Support HDMI,Input x1

Packing Details
Gross weight:      45KG
Packing size:       1350*850*140mm
Net weight:          38KG

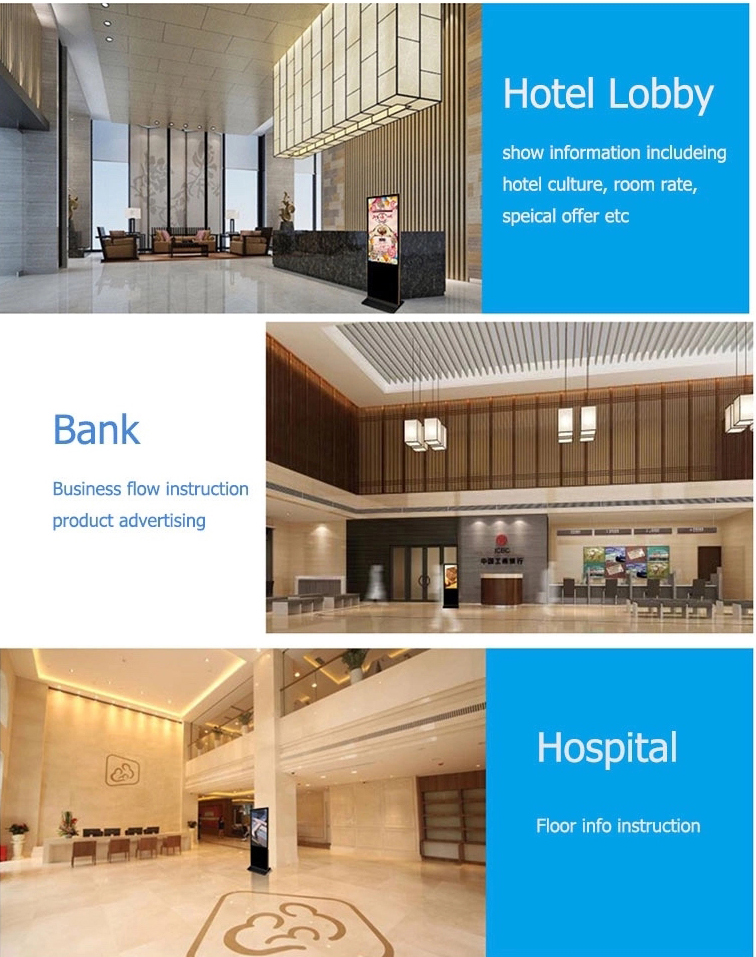

Product Applications:
