Model. P04-D4

Product Name    Small Industrial PC with Dual DDR4 Memory
Item NO.               P04-D4
Weight                 2.1 kg = 4.6297 lb = 74.0753 oz
Category             Industrial PC > Mini ITX PC
Creation Time   2020-07-14

Industrial computers are industrial control computers specially designed for industrial use. Their basic performance and compatibility are similar to those of commercial computers, but industrial computers pay more attention to stability in different environments. Hystou industrial computers have excellent stability and can adapt to the requirements of various industrial production environments.

Product Highlights:

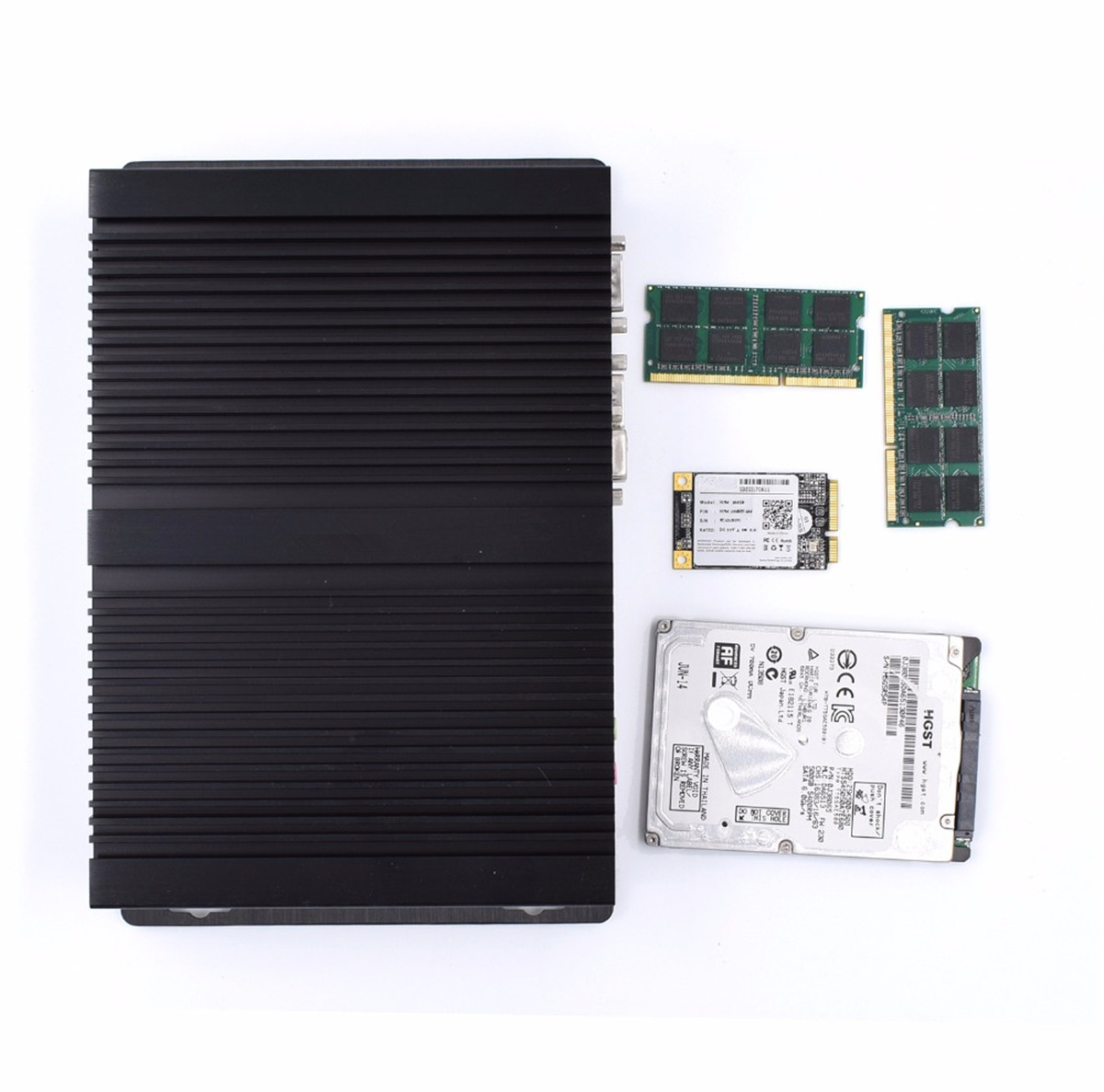

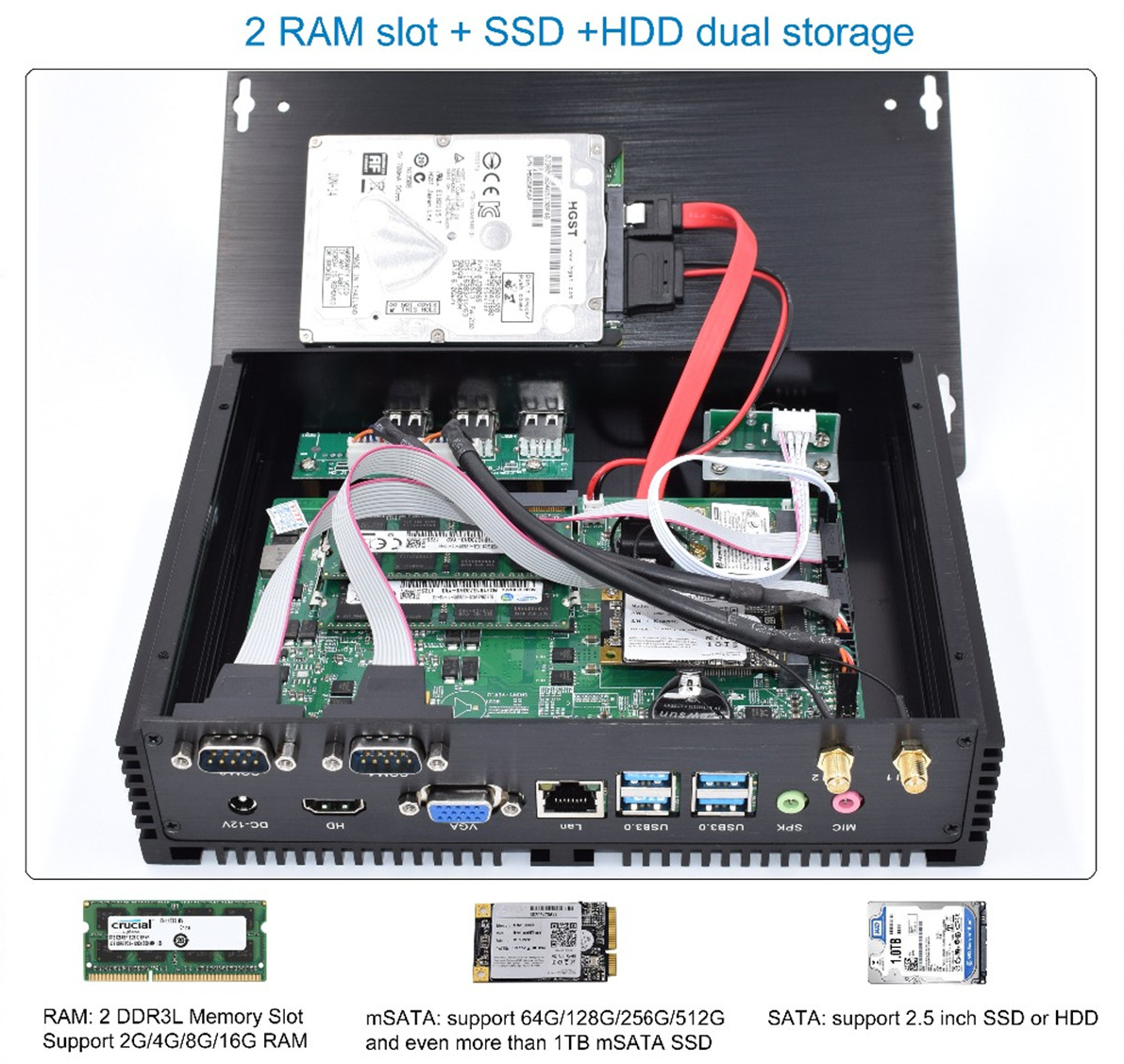

[Memory & Storage] Dual DDR4 260 pin SO-Dimm laptop memory make the mini pc much faster than others with Dual DDR3 memory. Storage: 1 x SATA3.0 for 2.5 inch HDD/SSD,1 x mSATA slot.

[Faster Running Speed] Equipped with Intel Core processor, pre-installed Windows 10 Pro（64-bit） Mini PC. Powerful hardware makes it run more stable. Creates smoothly experience for your visually home entertainment, streaming video, web browsing, gaming and work.

[Excellent Waterproof and Dustproof Effect]  Brushed full aluminum alloy silver color shell can effectively waterproof and moisture-proof, increasing the service life of the machine. Fanless operation avoids the requirement of air convection, thereby effectively preventing dust from entering the inside of the mini pc.

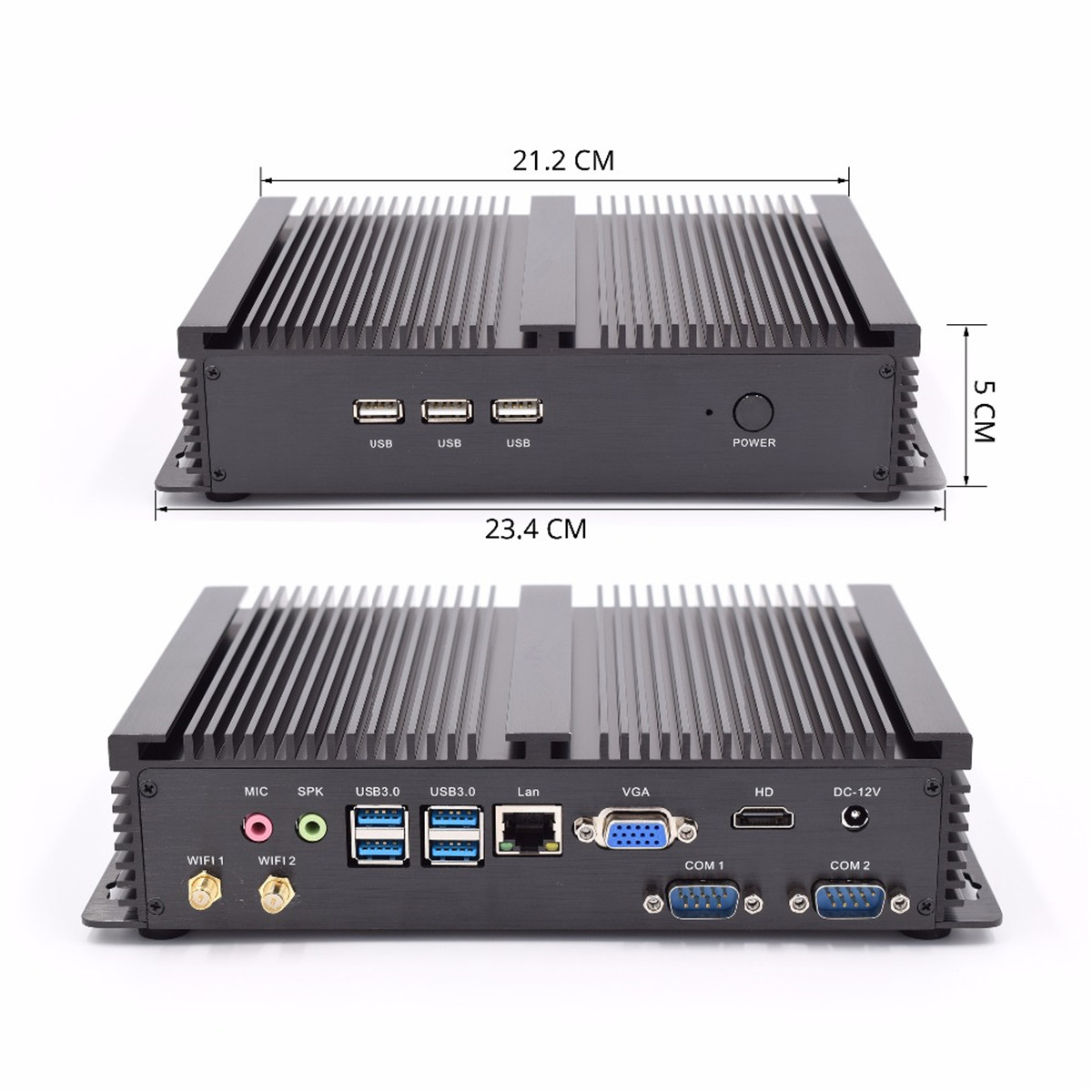

[Save Desktop Space] Due to its compact size, the mini host can be placed upright or lying down, freely placed in any small corner of the table, or fixed behind the monitor or TV screen with a special rack. The mini host frees up broader space resources for office and home life.

[No noise & Portability] The fanless design of this mini PC can save power and achieve zero noise. The unique shell design and energy-saving components make cooling faster and more efficient. We presented a mini console stand in the package, which can help you save a lot of space.

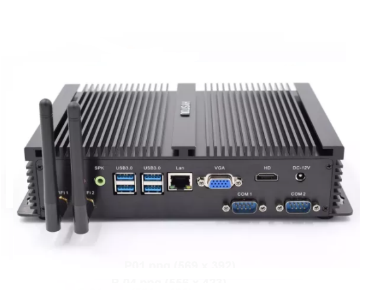

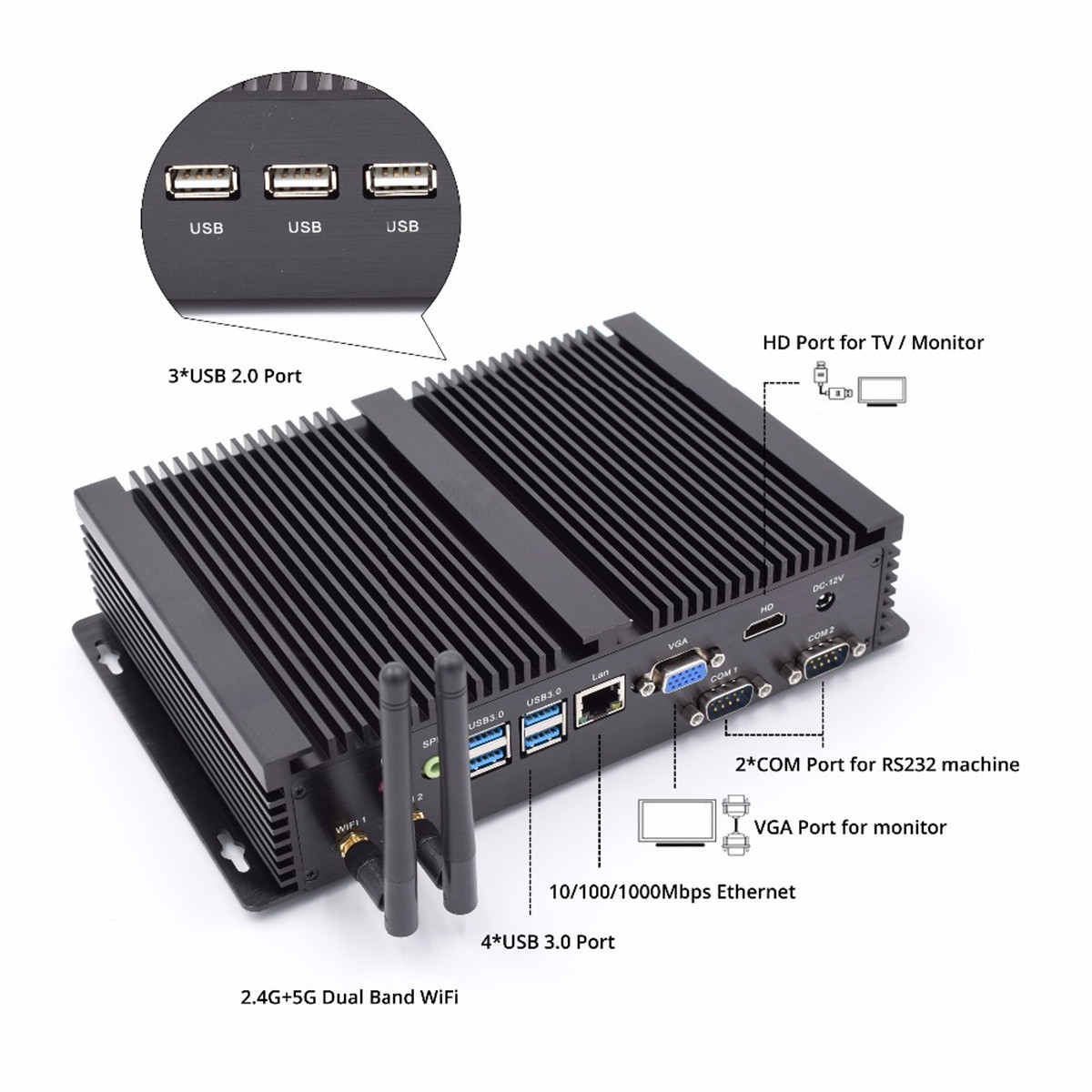

[Rich and diverse ports] 4 x USB 3.0 port, 3 x USB 2.0 port,VGA + HDMI Daul Display,1x RTL 8168/8111/8112 Gigabit NIC,2 x RS232 Com port.

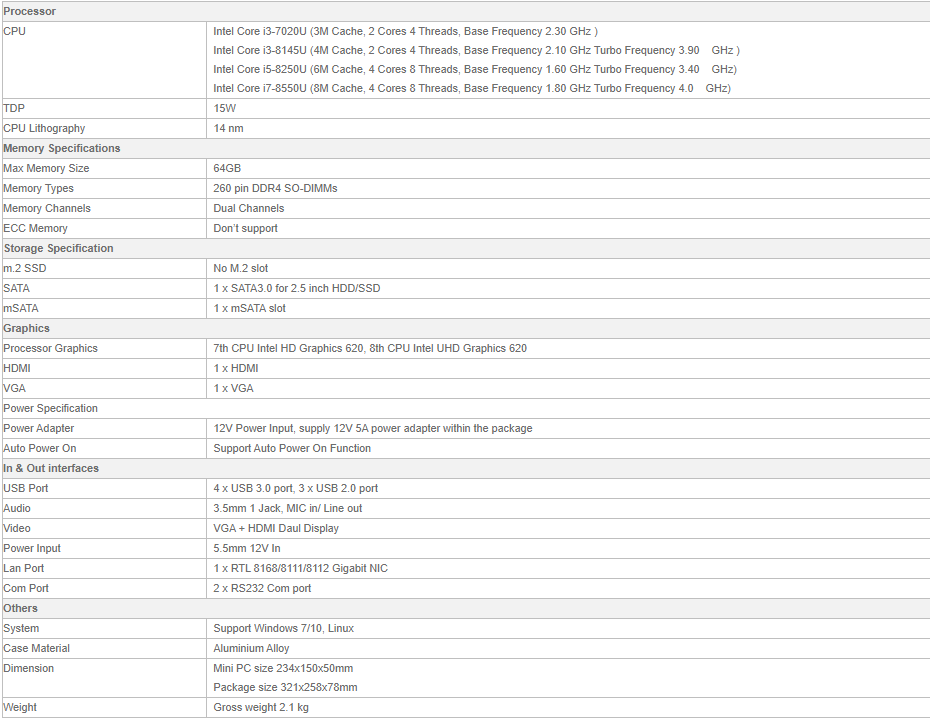

This mini pc motherboard can install 4 types of processors:
1. CPU Intel Core i3 7020U 2 core 4 threads 2.3Ghz 3MB cache TDP 15W Intel HD Graphics 620；
2. CPU Intel Core i3 8145U 2 cores 4 threads 2.1GHz up to 3.9Hz 4MB cache TDP 15W Intel UHD Graphics 620；
3. CPU Intel Core i5 8250U 4 cores 8 threads 1.6GHz up to 3.4GHz 6MB cache TDP 15W Intel UHD Graphics 620；
4. CPU Intel Core i7 8550U 4 cores 8 threads 1.8GHz up to 4.0GHz 8MB cache TDP 15W Intel UHD Graphics 620；
